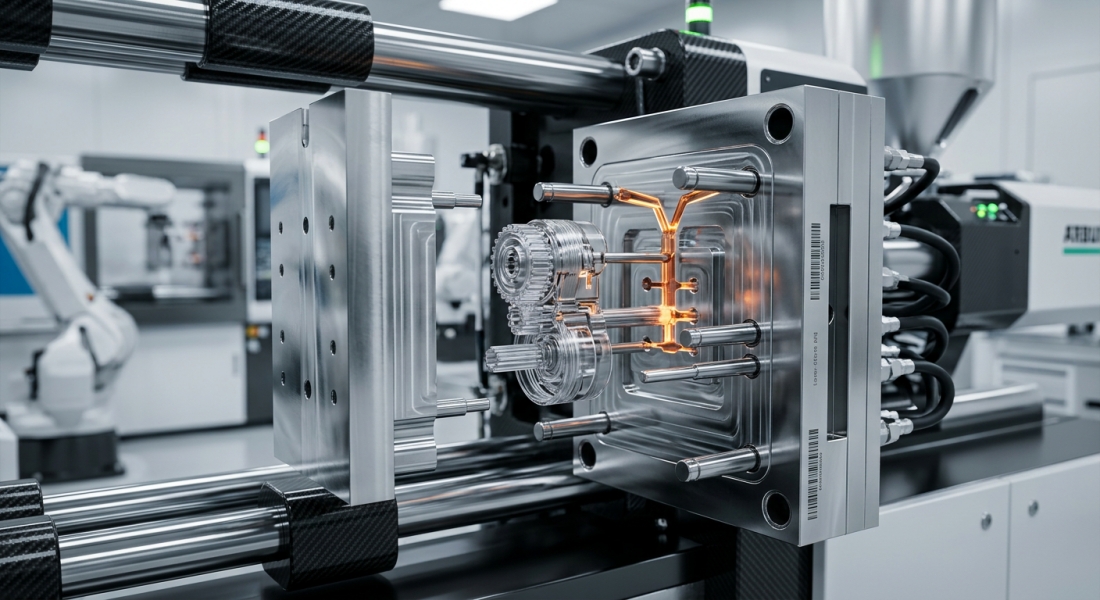

Comprehensive Troubleshooting Guide for Injection Molding Defects: Warping, Bubbles, Short Shots, and Sink Marks

Injection molding is one of the most widely used manufacturing processes in the world for producing plastic parts in large volumes. From high-precision automotive structural parts to intricate components used in medical and communication equipment, injection molding offers unparalleled efficiency and repeatability. However, achieving the perfect plastic part is not always a straightforward process. Even with the most advanced machinery, manufacturers often encounter cosmetic and structural defects that can compromise the quality of the final product.

At Huawei Product Development Industrial Ltd (HWPD), we have over 30 years of experience in product design, prototyping, and mold processing. We understand that identifying the root cause of plastic injection molding defects is critical to maintaining production efficiency and product integrity. Whether you are using a prototype injection mold to verify a new design or running a mass production mold, understanding how to troubleshoot these issues is essential.

In this comprehensive guide, we will explore the most common injection molding defects. We will answer critical questions such as why injection molded parts warp, what causes bubbles and short shots, and how to effectively fix sink marks. By the end of this article, you will have a deep understanding of how to optimize your injection molding process and how partnering with an experienced manufacturer like HWPD can save you time, reduce costs, and ensure top-tier quality.

Understanding the Complexities of Injection Molding

Before diving into specific defects, it is important to understand that injection molding is a highly complex process involving the delicate balance of multiple variables: temperature, pressure, material flow, and cooling rates. A slight deviation in any of these parameters can result in a defective part.

When our clients at HWPD develop new items, we often recommend starting with a prototype injection mold. This allows us to test and verify the design, the resin flowability, and the overall injection stability. By doing so, we can identify potential defects—like warping or short shots—early in the development phase, reducing the risk of costly waste during mass production.

Let’s examine the four most common defects in injection molding and how to solve them.

Why are injection molded parts warping?

Warping (or warpage) is one of the most frustrating defects in the injection molding industry. It occurs when the molded part shrinks unevenly during the cooling process, causing the final product to twist, bend, or bow out of its intended shape. Instead of a perfectly flat or geometrically accurate part, you are left with a distorted component that may not fit into its final assembly.

Primary Causes of Warping in Injection Molding

1. Uneven Cooling Rates: The most common cause of warping is uneven cooling. If one side of the plastic part cools faster than the other, the cooler side will shrink more quickly, pulling the hotter, softer side toward it. This internal stress results in warpage.
2. Inconsistent Wall Thickness: Parts designed with varying wall thicknesses are highly susceptible to warping. Thicker sections take longer to cool and shrink more than thinner sections, leading to uneven stress distribution.
3. Improper Injection Pressure and Time: If the injection pressure is too low or the hold time is too short, the plastic material will not be packed tightly enough into the mold cavity. This allows the material to shrink excessively as it cools.
4. Material Selection: Different plastic resins have different shrink rates. Semi-crystalline materials (like Nylon or POM) generally have higher shrink rates and are more prone to warping than amorphous materials (like ABS or Polycarbonate).

How to Prevent and Fix Warping

• Optimize Mold Cooling Design: Ensure that the mold has a well-designed cooling channel system. The cooling lines should be placed uniformly around the mold cavity to ensure that all areas of the part cool at the same rate.
• Redesign for Uniform Wall Thickness: During the Design for Manufacturability (DFM) phase, ensure that the part has a uniform wall thickness. If variations are necessary, make the transitions gradual rather than abrupt.
• Adjust Injection Molding Parameters: Increase the injection pressure and hold time to ensure the mold is fully packed. Additionally, adjusting the mold temperature to match the specific resin's requirements can significantly reduce internal stresses.
• Utilize Prototype Molds: At HWPD, we use prototype injection molds to test the cooling and shrinkage behavior of the exact plastic materials that will be used in mass production. This allows us to adjust the mold design before cutting the final production mold.

What causes bubbles in injection molding?

Bubbles, also known as voids or gas pockets, are empty spaces trapped within the walls of an injection molded part. While they may sometimes only be a cosmetic issue (especially in transparent parts), they can severely weaken the structural integrity of the component.

It is important to distinguish between two types of bubbles: vacuum voids (caused by shrinkage) and gas bubbles (caused by trapped air or moisture).

Primary Causes of Bubbles

1. Trapped Air or Gas (Gas Bubbles): If the mold lacks proper venting, the air inside the cavity cannot escape as the molten plastic is injected. This trapped air gets compressed and forms bubbles within the plastic. Additionally, if the plastic resin degrades due to excessive heat, it can release gases that form bubbles.
2. Moisture in the Resin: Many plastic resins, such as Nylon, PET, and Polycarbonate, are hygroscopic, meaning they absorb moisture from the air. If the resin is not properly dried before the injection molding process, the moisture turns into steam when heated, creating bubbles in the final part.
3. Uneven Shrinkage (Vacuum Voids): Vacuum voids typically occur in the thicker sections of a part. As the outer skin of the plastic cools and solidifies against the mold walls, the inner core remains molten. As the core eventually cools and shrinks, it pulls away from the center, creating a vacuum void (which looks like a bubble).

Solutions for Eliminating Bubbles

• Improve Mold Venting: Ensure that the mold design includes adequate vents to allow trapped air and gases to escape during the injection phase. Vents should be placed at the end of the flow path.
• Properly Dry the Material: Always follow the material manufacturer's guidelines for drying hygroscopic resins. Using a desiccant dryer to remove moisture before molding is crucial.
• Adjust Injection Speed and Pressure: Slowing down the injection speed can allow air more time to escape through the vents. Increasing the holding pressure and holding time can help pack more material into the mold, preventing vacuum voids in thick sections.
• Modify Part Design: Coring out thick sections of the part to maintain uniform wall thickness is the most effective way to prevent vacuum voids.

What causes short shots in injection molding?

A short shot occurs when the molten plastic fails to completely fill the mold cavity, resulting in an incomplete part. This defect is immediately noticeable, as portions of the product—often at the edges, thin walls, or the furthest points from the gate—will be missing.

Primary Causes of Short Shots

1. Insufficient Injection Pressure or Speed: If the injection molding machine does not apply enough pressure, or if the injection speed is too slow, the molten plastic may freeze (solidify) before it reaches the end of the mold cavity.
2. Low Melt or Mold Temperature: If the temperature of the molten resin or the mold itself is too low, the plastic will have poor flowability (high viscosity). It will cool and solidify prematurely, blocking the flow of the remaining material.
3. Inadequate Venting: Just as trapped air can cause bubbles, it can also cause short shots. If air cannot escape the mold cavity, it compresses and creates back-pressure, physically preventing the plastic from filling the space.
4. Poor Gate or Runner Design: If the gates or runners are too small, they restrict the flow of the plastic. The material may freeze off at the gate before the cavity is fully packed.

How to Resolve Short Shots

• Increase Temperatures: Raise the barrel temperature and the mold temperature to improve the flowability of the resin. However, be careful not to exceed the material's degradation temperature.
• Boost Injection Pressure and Speed: Increasing the injection pressure and speed ensures the material is pushed into the furthest extremities of the mold before it has a chance to freeze.
• Check and Improve Venting: Inspect the mold for blocked vents and add additional venting at the locations where the short shots are occurring (the last places to fill).
• Optimize Mold Design: Enlarge the gates and runners to allow for a smoother, less restricted flow of material. Using mold flow analysis during the design phase—a standard practice at HWPD—can predict and prevent short shot issues before the mold is even manufactured.

How to fix sink marks in injection molding?

Sink marks are shallow depressions or dimples on the surface of an injection molded part. They typically occur over thicker sections of the part, such as where ribs, bosses, or gussets intersect with the main wall. Sink marks are primarily a cosmetic defect, but they indicate underlying shrinkage issues.

The Science Behind Sink Marks

Sink marks are closely related to vacuum voids. When a thick section of plastic cools, the outer surface solidifies first. As the thicker inner core cools and shrinks, it pulls the already solidified outer surface inward, creating a depression or "sink" on the visible surface of the part. If the outer skin is strong enough to resist pulling inward, a vacuum void (bubble) forms inside instead.

Strategies to Fix Sink Marks

1. Modify the Part Design (Best Practice): The most effective way to fix sink marks is through proper design. The thickness of ribs and bosses should be no more than 60% to 80% of the thickness of the adjoining main wall. Additionally, coring out thick areas to maintain uniform wall thickness will eliminate the root cause of the shrinkage.
2. Increase Holding Pressure and Time: By increasing the holding pressure and extending the holding time, you can force more molten plastic into the cavity to compensate for the shrinkage as the part cools.
3. Increase Cooling Time: Allowing the part to remain in the mold longer ensures that the thicker sections have adequately cooled and solidified before the part is ejected, reducing the chance of the surface sinking inward.
4. Adjust Temperatures: Lowering the melt temperature and mold temperature can reduce the overall volumetric shrinkage of the material, thereby reducing the severity of sink marks.

Injection Molding Defect Troubleshooting Summary Table

To help you quickly diagnose and resolve issues on the production floor, we have compiled this quick-reference troubleshooting table for injection molding defects.

The Role of Prototype Injection Molds in Defect Prevention

At Huawei Product Development Industrial Ltd (HWPD), we strongly advocate for the use of prototype injection molds for new product development.

When launching a new product, jumping straight into mass production tooling carries significant financial risk. If design flaws cause warping, short shots, or sink marks, modifying a hardened steel mass production mold is incredibly expensive and time-consuming.

Advantages of HWPD's Prototype Injection Molds:

• Test and Verification of Part Design: Identify areas prone to sink marks or warping before committing to expensive tooling.
• Test and Verification of Resin Flowability: Real-world testing reveals if short shots or bubbles will be an issue with your chosen material.
• Same Plastic Materials: Unlike 3D printing, our prototype molds use the exact same plastic materials as mass production, giving you accurate data.
• Quality Level: The accuracy of our prototype injection molds is the same as regular molds, making them perfect for launching small batches of new products to the market.
• Cost and Time Efficiency: The lead time for prototype injection molds is much shorter, and the cost is significantly lower than regular molds, helping you maintain a competitive advantage.

HWPD: Your Expert Partner in Injection Molding

Huawei Product Development Industrial Ltd is your reliable partner in product design, prototype, and mold processing. As a medium and large-scale professional mold manufacturing enterprise in China, we boast over 30 years of production experience.

Our mold building services focus on high-precision automotive structural parts and high-precision parts used in the equipment or instruments of the medical and communication industries. We produce a wide range of molds, including those for automotive interior parts (door panels, instrument panels), automotive exterior parts (bumpers, grilles), medical device housings, and parts for AI robots.

Relying on scientific and standardized enterprise management and years of technical accumulation, we have won the long-term trust of numerous customers at home and abroad. We are proud to serve well-known enterprises and world-famous automakers, including Panasonic, Honda, Toyota, BMW, Volvo, Mercedes-Benz, General Motors, Ford, Volkswagen, and Nissan.

Our strict QC system, including DFM meeting procedures, Design Verification & Validation procedures, and a highly efficient mold processing management system, guarantees high precision mold processing and on-time delivery.

Frequently Asked Questions (FAQ) About Injection Molding

Q1: What is the difference between a prototype injection mold and a production mold?
A: A prototype injection mold (often made of aluminum or softer steel) is built quickly and cost-effectively to test part design, material flow, and functionality for small batches. A production mold is made of hardened steel, designed for high precision, long service life, and efficient mass production of hundreds of thousands of parts.

Q2: Can injection molding defects be completely eliminated?
A: While it is nearly impossible to achieve a 100% zero-defect rate in any manufacturing process, defects can be reduced to negligible levels through proper Design for Manufacturability (DFM), mold flow analysis, precise machine calibration, and using prototype molds to test designs beforehand.

Q3: How does HWPD ensure the quality of its injection molded parts?
A: We utilize a strict QC management system. This includes comprehensive DFM analysis before mold creation, precise temperature and pressure control during the injection molding process, and rigorous post-production inspections.

Q4: What materials can be used in HWPD's prototype injection molds?
A: One of the major advantages of our prototype molds is that they can accommodate the exact same plastic materials that will be used in mass production. This includes ABS, Polycarbonate, Nylon, POM, TPU, and various blends, ensuring accurate testing and verification.
